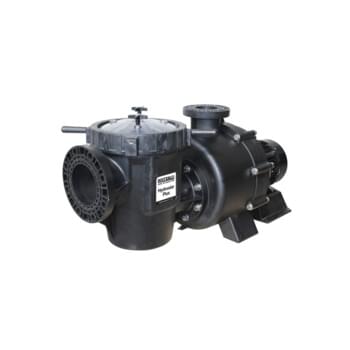

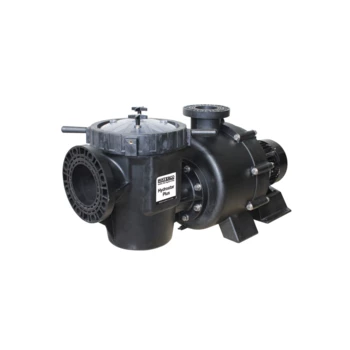

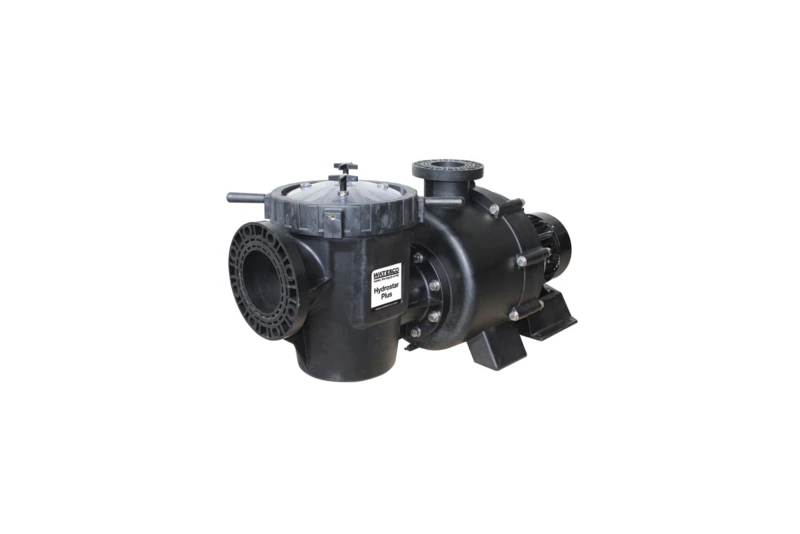

Hydrostar plus 1450 pumps
The Hydrostar plus 1450 pump is a high-performance, corrosion-resistant thermoplastic pump equipped with a 4 pole motor running at 1450 rpm.
This pump is built for durability and is perfect for applications that require extended use, making them ideal for aquatic facilities, water parks and large commercial swimming pools.
Available in 5.0hp, 7.5hp and 10.0hp.
Hydrostar plus 1450 pumps are high-performance corrosion-resistant thermoplastic pumps equipped with a 6” flanged inlet port and 4” flanged outlet port. The pump’s 4 pole motor runs at 1450 rpm making them ideal for high water flow applications such as aquatic facilities, water parks and large commercial swimming pools.
Hydrostar Plus 1450 pump’s main body is constructed from an injection moulded glass-reinforced thermoplastic. Glass reinforced thermoplastic possesses superior mechanical and chemical resistance to steel.
Features:
- Heavy-duty IP55 weatherproofed 4 pole motor IE 3 Class
- VSD compatible
- Glass-filled Noryl impeller for long-lasting reliability
- Corrosion resistance (431 stainless steel) shaft sleeve
- 6” ANSI flange suction port
- 4” JIS flange discharge port
- Self-lubricating mechanical seals
Strainer Basket Features:
- UV stabilised and corrosion free
- Max flow rate 2450 LPM (147 m3/hr) (647 US GPM)
- Clear polycarbonate lid
- Lock ring with easy-grip handles for easy maintenance
- Pressure relief valve
Technical Specification
|
Construction Material |
|
|
Motor Bracket |
Glass Filled Polypropylene |
|
Pump Bracket |
Glass Filled Polypropylene |
|
Pump Body |
Glass Filled Polypropylene |
|
Seal Assembly |
Alumina Ceramic/SS316/Carbon *Optional Seal Material Silicon Carbide |
|
Impeller |
Glass Filled Noryl |
|
Diffuser |
Glass Filled Polypropylene |
|
Pump Body (O’ring) |
NBR |
|
Strainer Basket |
Polypropylene |
|
Strainer Lid |
Polypropylene |
|
Lock Ring |
Glass Filled Noryl |

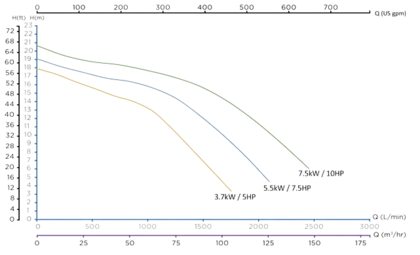

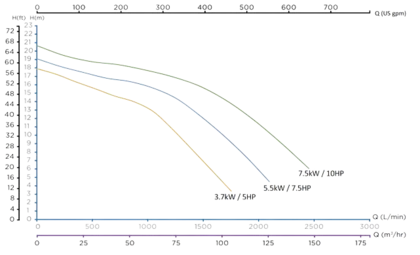

Technical Specifications With Strainer
|
Model |
Pump Input Power
|
Amp/ Phase |
Motor Input Power (kW) |
Motor Imax (A) |
Qmax (m3/h) |
Hmax (m) |
|
|
(kW) |
(HP) |
||||||
|
3.7kW/ 5.0HP |
4.16 |
5.57 |
8.7 |
4.19 |
8.7 |
105.2 |
17.9 |
|
5.5kW/ 7.5HP |
5.75 |
7.70 |
11.8 |
6.14 |
11.8 |
125.8 |
19.1 |
|
7.5kW/ 10HP |
7.76 |
10.40 |
16.3 |
9.30 |
16.1 |
147.2 |
20.7 |

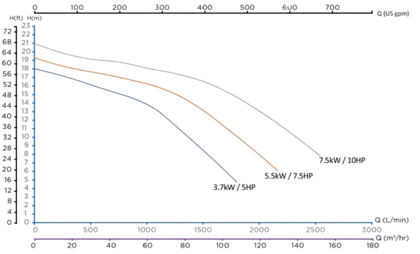

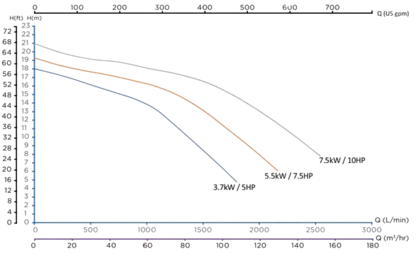

Technical Specifications Without Strainer
|
Model |
Pump Input Power
|
Amp/ Phase |
Motor Input Power (kW) |
Motor Imax (A) |
Qmax (m3/h) |
Hmax (m) |
|
|
(kW) |
(HP) |
||||||
|
3.7kW/ 5.0HP |
4.15 |
5.56 |
8.8 |
4.19 |
8.7 |
107.6 |
18.0 |
|
5.5kW/ 7.5HP |
5.64 |
7.60 |
11.6 |
6.14 |
11.8 |
129.5 |
19.3 |
|
7.5kW/ 10HP |
7.86 |
10.50 |
16.3 |
9.30 |
16.1 |
152.3 |
21.0 |
Qmax = Maximum flow rate Hmax = Maximum head

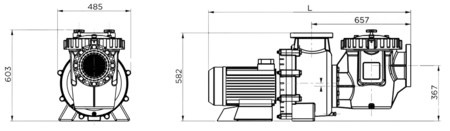

Weight and Dimensions

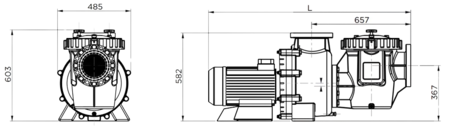

With Stainer
|
Model |
Weight (kg) |
Total Length |
|
3.7kW/ 5.0HP |
89 |
1236 |
|
5.5kW/ 7.5HP |
96 |
1274 |
|
7.5kW/ 10HP |
112 |
1340 |

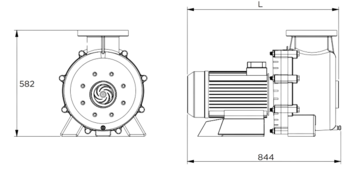

Without Stainer
|
Model |
Weight (kg) |
Total Length |
|
3.7kW/ 5.0HP |
73 |
729 |
|
5.5kW/ 7.5HP |
80 |
767 |
|
7.5kW/ 10HP |
96 |
833 |
Motor Specifications
|
Phases |
Volts |
Cycle |
RPM |
IP Rating |
Pump IP Rating |
|
3 |
400 |
50Hz |
1450 |
IP55 |
X5 |
