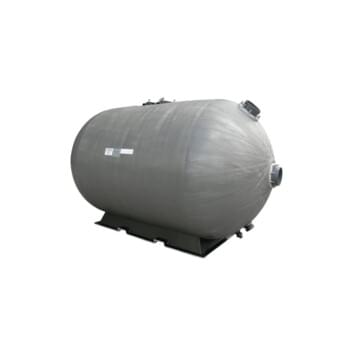

Micron Horizontal Commercial Filter

Manufactured from the highest grade of non corrosive materials and employing the latest in fibreglass winding technology, Micron fibreglass filters are designed and built for many years of trouble free operation. Micron commercial fibreglass filters are available in top mount, side mount and horizontal configurations from filter areas of 0.87m2 to 10.0m2.

Sign Up for Waterco Newsletter

  • The Micron horizontal filter is a space-saving high performer; its compact horizontal design allows installation with minimum waste of space.

    The shape of the Micron horizontal filter is both attractive and functional. The spherical ends are designed to give uniform flow from both inlet and outlet collection assemblies. Micron horizontal filters are available with a 500mm (M) filter media bed and a 1200mm (MD) filter media bed.

  •

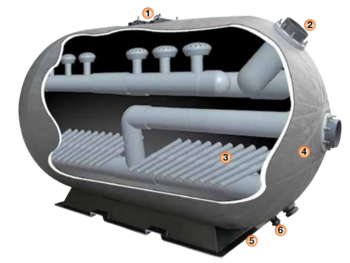

    1. Elliptical positive sealing manways.
    2. Flanged port of up to 10”.
    3. Hydraulically balanced distribution and lateral system.
    4. Fibreglass wound tank, UV and corrosion resistant.
    5. Large stable filter base for stable floor mounting.
    6. Manual drain.

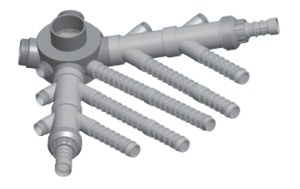

  • Hydraulically balanced lateral configuration

    Waterco’s new lateral configuration provides a more natural flow of water through the filter, ensuring optimum water filtration and balanced fluidisation of the filter bed during backwashing. Its individual laterals are shortened while maintaining filter media bed coverage to reduce the friction head loss of each lateral and further improve the filter’s hydraulic efficiency. This reduces backwash run times, saves valuable water, and produces flatter, more uniform filter media bed after backwashing.

  •

  • 10 Year Warranty

The spherical ends are designed to give uniform flow from both inlet and outlet collection assemblies. Micron horizontal filters are available with a 500mm (M) filter media bed and a 1200mm (MD) filter media bed.

  • Elliptical positive sealing manways.
  • Flanged port of up to 10”.
  • Hydraulically balanced distribution and lateral system.
  • Fibreglass wound tank, UV and corrosion resistant.
  • Large stable filter base for stable floor mounting.
  • Manual drain
