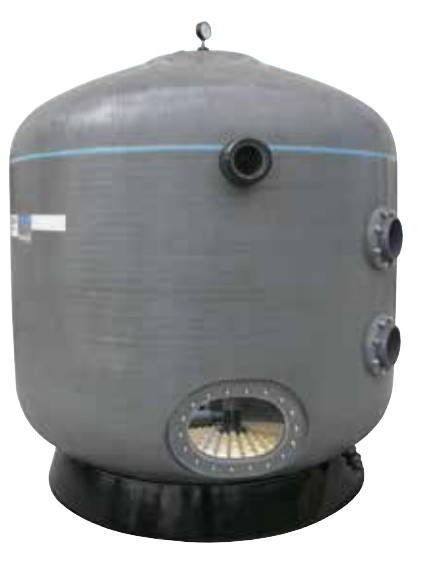

Micron SPDD Nozzle Plate Side Mount Deep Bed Filters
The Micron Side Mount Nozzle Plate Deep Bed (SPDD) series filters, come with a nozzle plate lateral configuration, have a filter media bed depth of 1200 mm, and a 2.5 bar, 4.0 bar, 6.0 bar, and 8.0 bar pressure rating.
-
Micron SPDD filters are fitted with a plate and nozzle system, which ensures uniform flow for both filtering and backwashing. This ensures maximum performance through the media bed.
The nozzle plate system also allows the introduction of pressurised air directly into the bottom of the filter media. Uniform introduction of air and water through the nozzle plate provides vigorous agitation and filter media expansion required for an effective air/water backwash leading to reduced backwashing times and reduced volumes of water. This saves up to 25% of backwash water.
-
Patented nozzle plate filter
A new method of fabricating a nozzle plate filter eliminates failure rates experienced in most other nozzle plate filters. Nozzle plates are traditionally attached to the wall of the filter, separating the unfiltered water and filtered water of the tank. During filtration mode as well as backwashing mode, the plate has cyclic movement vertically flexing upwards and downwards, whereas the wall of the filter has cyclic movements horizontally flexing inwards and outwards.
-
-
Flexible joint
Waterco’s unique construction method eliminates this problem, by creating a separate chamber within the filter. Additionally, the nozzle plate is attached to the wall of the filter with a flexible joint, instead of traditionally attaching a rigid joint. This removes the stress typically found in traditional nozzle plate filters, further enhancing the durability of these filters.
The filters can be used with a combination of in depth filtration techniques, and a variety of media, to provide everything from sediment removal to the elimination of minerals and odours from water. Combining filter housings and various filter media, Micron Deep Bed filters can be fitted in configurations to provide multi-stage water treatment. With easy access for filter media filling and removal, the SPDD series filters are versatile and can be used in most water treatment applications.
FAQ
- What is the Micron Nozzle Plate Media Filter by Waterco?
The Micron Nozzle Plate Media Filter is an advanced water filtration system designed for various applications, featuring a nozzle plate design for efficient and thorough filtration/backwashing.
- What are they key features of the Micron Nozzle Plate Media Filter?
The filter typically features a durable tank construction, high-quality nozzle plate, and advacned filtration capabilities, ensuring superior filtration and backwashing efficieny.
- Where can I use the Micron Nozzle Plate Media Filter?
The filter is suitable for applications such as swimming pools, water features, aquaculture/ life support systems and industrial processes, offering effective water filtration.
- Is the Micron Nozzle Plate Media Filter energy-efficient?
The nozzle plate filter is more efficient than regular lateral style vessels.
- What maintenance is required for the Micron Nozzle Plate Media Filter?
Regular maintenance includes backwashing, media replacement from time to time inspecting the nozzles when replacing media, and ensuring that the filter is operating within specified parameters. Refer to the user manual for comprehensive maintenance guidelines.
The filters can be used with a combination of in depth filtration techniques, and a variety of media, to provide everything from sediment removal to the elimination of minerals and odours from water. Combining filter housings and various filter media, Micron Deep Bed filters can be fitted in configurations to provide multi-stage water treatment. With easy access for filter media filling and removal, the SPDD series filters are versatile and can be used in most water treatment applications.
