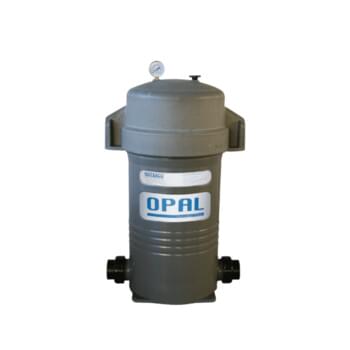

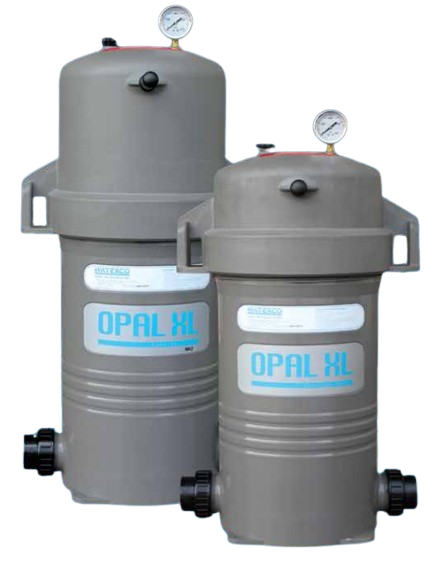

Opal XL Cartridge Filter

Opal XL Cartridge Filters are designed to house an extra-large filter cartridge, maximising its dirt holding capacity and minimising filter maintenance.

The filter's dome lid allows easy access to the filter cartridge for removal, cleaning, and installation in a matter of minutes. The Opal XL Cartridge Filters are ideal for applications where backwashing may not be practical or areas where water may be scarce

Sign Up for Waterco Newsletter

  • Opal XL cartridge filters are designed to house an extra large filter cartridge, maximising its dirt holding capacity and minimising filter maintenance.

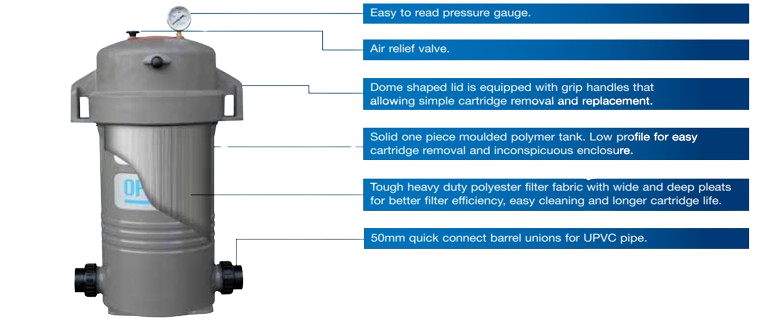

    The filter’s dome lid is equipped with grip handles that allows easy access to the filter cartridge for removal, cleaning and installation in a matter of minutes. The Opal XL cartridge filters are ideal for applications where back washing may not be practical or areas where water may be scarce.

  •



    Rugged Construction

    Constructed from high impact polypropylene and designed for easy maintenance. The Opal XL cartridge filters will provide years of trouble free service.

  •

  •



    Extra Large Filter Cartridge

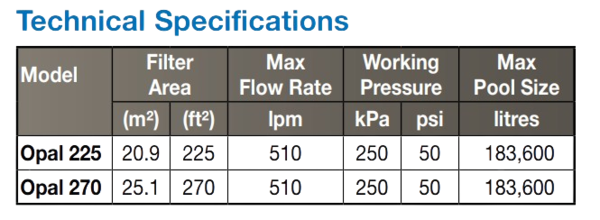

    Opal XL filter cartridges are fabricated from pleated reusable polyester fabric. The extra larger size cartridge has been pleated to provide 225ft2 (20.9m2 ) to 270ft2 (25.1m2 ) of surface area maximising its dirt holding capacity and minimising filter maintenance.

  •



    Simple Maintenance

    The filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.

    Material: Polyester fabric material, plastisol end caps and a polypropylene core. Operating Temperature: 4ºC to 50ºC Maximum Pressure Drop: 20 kPa

  •

Constructed from high impact polypropylene and designed for easy maintenance. The Opal XL Cartridge Filters will provide years of trouble-free service

Extra Large Filter

Opal XL Filter Cartridge (Element) is fabricated from pleated reusable polyester fabric. The extra larger size cartridge has been pleated to provide 225ft (20.9m2) to 270ft2 (25.1m2) of surface area maximising its dirt holding capacity and minimising filter maintenance.

Simple Maintenance

The filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.

Material: Polyester fabric material, plastisol end caps, and a polypropylene core.

Operating Temperature: 4ºC to 50ºC

Maximum Pressure Drop: 20 kPa
