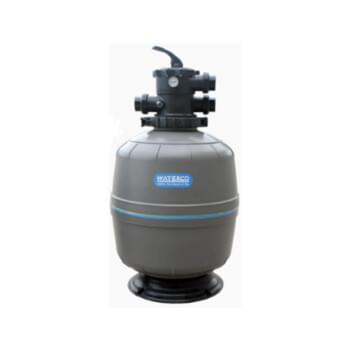

Exotuf Plus Top Mounted Filter

The Exotuf Plus top mounted filter is designed to cope with the cyclic pressures of the modern day swimming pool and features a hydraulically efficient fish tail lateral system that facilitates energy and water savings.

Sign Up for Waterco Newsletter

  • The Exotuf Plus media filters are designed to cope with the cyclic pressures of the modern day swimming pool and feature hydraulically efficient fish tail lateral systems which facilitate energy and water savings.

    • Water savings of up to 30%

    • Ideal for low powered and energy efficient pumps

    • Multiport valve clamp provides 360° orientation of the multiport valve for simple installation and service

    • Hydraulically balanced flow distribution, to maximise filtration and backwashing

    • Enhanced water clarity

    • Pressure rated at 350 kPa

    • Corrosion and UV resistant

  • Top Mount Configuration

  • Depth Filtration

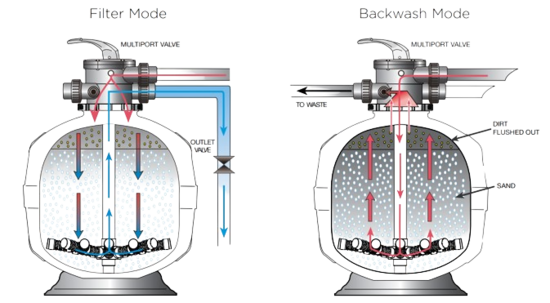

    The Exotuf Plus filters operate based on “Depth Filtration”; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter’s laterals and exit via the filter’s Multiport valve.

    Ease of Maintenance

    Cleansing the filter simply requires turning the filter’s multiport lever from the “filter” position to the “backwash” position, which reverses the flow of water in the filter, flushing the filter bed.

  • Water Saving

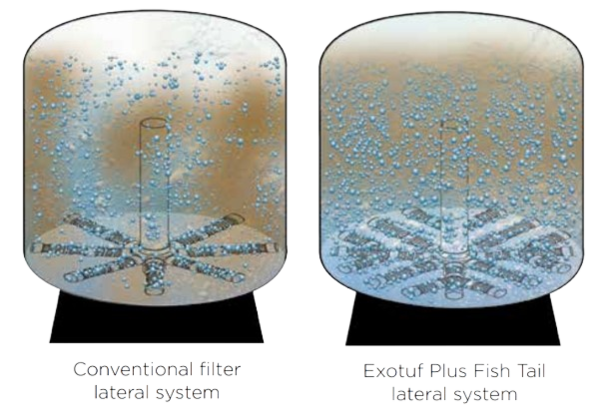

    “Fish Tail” laterals Exotuf Filters are equipped with “Fish Tail” laterals, to improve its filtration and backwashing hydraulic efficiency. Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing. Exotuf Filters backwash time is significantly reduced, leading to a 30% savings of backwash water



    Energy Saving “Fish Tail” laterals

    The Exotuf Filters hydraulic efficiency halves the backwash flow rate of a conventional sand filter, allowing the option for low powered, energy efficient pumps for filtration flow and backwash flow.

  •



The Exotuf Plus top mounted filter is designed to cope with the cyclic pressures of the modern day swimming pool and features a hydraulically efficient fish tail lateral system that facilitates energy and water savings.

  • Water savings of up to 30%
  • Ideal for low powered and energy efficient pumps
  • Multiport valve clamp provides 360° orientation of the multiport valve for simple installation and service
  • Hydraulically balanced flow distribution, to maximise filtration and backwashing
  • Enhanced water clarity
  • Pressure rated at 3.5 BAR
  • Corrosion and UV resistant
