Automatic Water Management

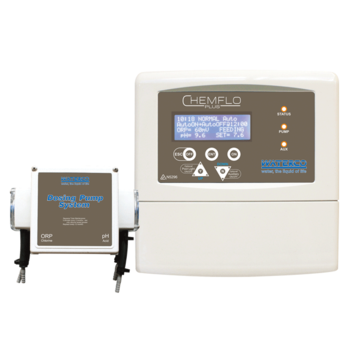

ChemfloPlus continuously analyses your pool water chemistry and accurately sanitises and controls the pool’s pH, keeping your pool water safe and healthy.
The ChemfloPlus automatic control system measures and precisely controls set levels of sanitiser (chlorine) and pH balance (acid) through feedback from inline sensors. This ensures the safest possible swimming conditions. Costs are reduced by minimising chemical use and preventing excessive addition of chemicals that may damage the pool and its equipment.
The ChemfloPlus automatic control system measures and precisely controls set levels of sanitiser (chlorine) and pH balance (acid) through feedback from inline sensors. This ensures the safest possible swimming conditions. Costs are reduced by minimising chemical use and preventing excessive addition of chemicals that may damage the pool and its equipment.

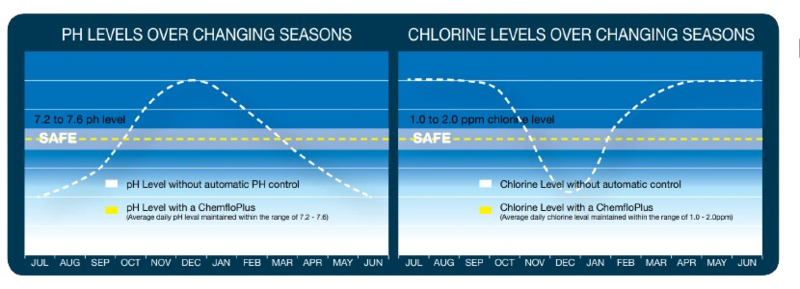

Automatic response to seasonal demand
The Chemflo will automatically maintain the required chlorine level of your pool and eliminate problems associated with periods of very high or low chlorine levels throughout the year. Fewer fluctuations in chlorine levels mean fewer fluctuations in pH levels. This adds up to more stable, balanced water.
Pool lights timer: ChemfloPlus comes with a dedicated timer for your pool or garden lights.
Additional timed power outlets: Using the optional power separator, ChemfloPlus will provide an additional timed power outlet – which can be used to operate other accessories such as an in-floor cleaning system pump, pressure cleaner booster pump or pool lighting.
Suitable for Tariff 33: The ChemfloPlus unit comes with a timer function built into the operation software. This timer is backed-up with 24 hour type timer with quartz –crystal control, backed up by a Real-Time Clock.
Energy saving: Power requirements are minimal. ChemfloPlus’s dosing systems only operate when required.

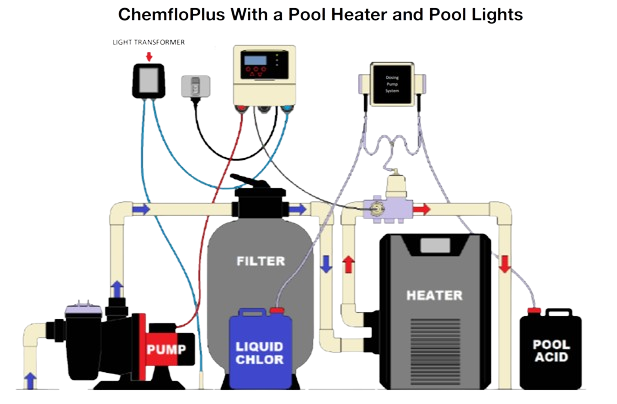

Installation Layouts
Controls Pool and Spa combinations:
A ChemfloPlus system is ideal for pool and spa combinations, because it senses the water from either the pool or spa and adjusts accordingly, thus ensuring each is sanitised to an optimum level.
Multiple filtration cycles:
ChemfloPlus allows for up to 4 filter cycles to be activated. This gives extra flexibility, especially during seasonal adjustments – e.g. use one cycle for winter, 2 cycles during summer, or all 4 cycles during a busy weekend, party, etc. The unit comes with 2 cycles enabled as the default.
Pool Lights Timer:
ChemfloPlus comes with a dedicated timer for your pool or garden lights.
Additional Timed Power Outlets:
Using the optional power separator, ChemfloPlus will provide an additional timed power outlet – which can be used to operate other accessories such as an in-floor cleaning system pump, pressure cleaner booster pump or pool lighting. ChemfloPlus lets your pool look after you!
Suitable for Tariff 33:
The ChemfloPlus unit comes with a timer function built into the operation software. This timer is backed-up with 24 hour type timer with quartz – crystal control, backed up by a Real-Time Clock. This timer allows the ChemfloPlus to “remember” the latest setup in case of power failure (or a slave type operation), or in systems where repeated power cuts occur, such as Queensland’s Tariff 33 system.

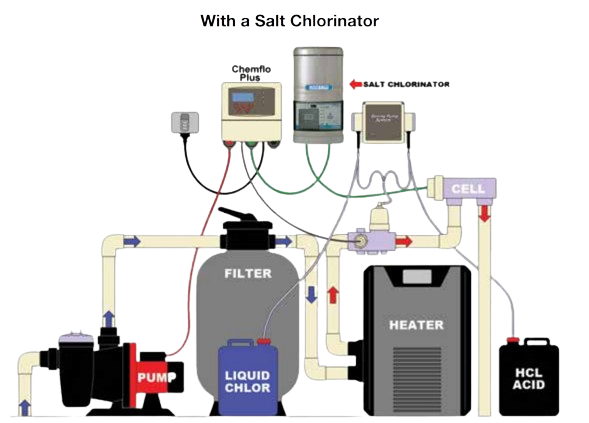

Automating a Salt Chlorinator:
The ChemfloPlus is specially configured to allow it to control a salt water chlorinator. It will constantly analyse the pool water while the pump is running and activates the salt water chlorinator when necessary. Just plug your salt water chlorinator into the ChemfloPlus and chlorine levels are maintained at a consistent set point, ensuring your pool is clean and safe to swim in.
ChemfloPlus maintains the pool’s water chemistry via the automated adjustment of the ORP and pH levels to optimal levels.
Pool sanitising chemicals like chlorine and bromine are all oxidisers. It is their ability to oxidize that makes them good water sanitisers. The oxidation process can be electronically monitored via an ORP sensor.
ORP stands for Oxidation-Reduction Potential. It is a measurement of the capacity of a sanitiser to oxidize contaminants
pH is a measurement of the acidity or alkalinity of a solution. It provides a value on a scale from 0 to 14, 7 is neutral, less than 7 is acidic, and greater than 7 is alkaline (or basic). The closer you move towards 0, the more a solution is acidic, and the closer you move to 14, the more a solution is alkaline.
pH and ORP are closely related. The effectiveness of a sanitiser like chlorine depends heavily on the pH. At a pH of 7.2 the effectiveness of chlorine is close to its peak. However, at a pH of 7.8 the chlorine loses approximately 80% of its sanitiser power. Therefore it is important that the pH of the pool is maintained to maximise the effectiveness of the sanitiser.
Controls Pool and Spa combinations:
A ChemfloPlus system is ideal for pool and spa combinations, because it senses the water from either the pool or spa and adjusts accordingly, thus ensuring each is sanitised to an optimum level.
Multiple filtration cycles:
ChemfloPlus allows for up to 4 filter cycles to be activated. This gives extra flexibility, especially during seasonal adjustments – e.g. use one cycle for winter, 2 cycles during summer, or all 4 cycles during a busy weekend, party, etc. The unit comes with 2 cycles enabled as the default.
Pool Lights Timer:
ChemfloPlus comes with a dedicated timer for your pool or garden lights.
Additional Timed Power Outlets:
Using the optional power separator, ChemfloPlus will provide an additional timed power outlet – which can be used to operate other accessories such as an in-floor cleaning system pump, pressure cleaner booster pump or pool lighting. ChemfloPlus lets your pool look after you!
Suitable for Tariff 33:
The ChemfloPlus unit comes with a timer function built into the operation software. This timer is backed-up with 24 hour type timer with quartz – crystal control, backed up by a Real-Time Clock. This timer allows the ChemfloPlus to “remember” the latest setup in case of power failure (or a slave type operation), or in systems where repeated power cuts occur, such as Queensland’s Tariff 33 system.
Automating a Salt Chlorinator:
The ChemfloPlus is specially configured to allow it to control a salt water chlorinator. It will constantly analyse the pool water while the pump is running and activates the salt water chlorinator when necessary. Just plug your salt water chlorinator into the ChemfloPlus and chlorine levels are maintained at a consistent set point, ensuring your pool is clean and safe to swim in.
