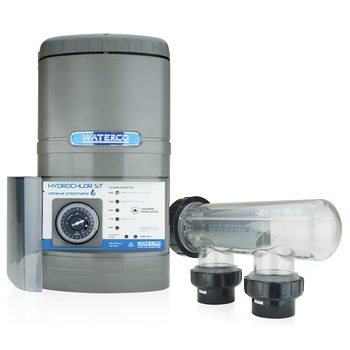

Waterco’s new, energy efficient Hydrochlor chlorinates your pool, making it healthy, crystal clear, and ready to swim in year-round. In fact, a Mineral / salt water chlorinated pool requires considerably less attention than a standard chlorinated pool.
Hydrochlor can work with a standard salt pool, but our engineers didn’t stop there. They specially designed it to work in synergy with Waterco’s Mineral Crystals to transform your pool in a therapeutic oasis.
Waterco’s new, energy efficient Hydrochlor chlorinates your pool, making it healthy, crystal clear, and ready to swim in year-round. In fact, a Mineral / salt water chlorinated pool requires considerably less attention than a standard chlorinated pool.
• Energy saving, intelligent, power pack
• Self-cleaning chlorinator cell
• In-built salt and flow protection
• Easy-to-use timer with battery backup
• Suitable for both Mineral Crystal and salt chlorination
Energy Saving, Intelligent, Power Pack
The Hydrochlor Mineral Chlorinator includes an energy saving, intelligent power pack that makes it easy to keep your pool sanitised and healthy to swim in.
Chlorination
The main function of the Hydrochlor Mineral Chlorinator is to produce chlorine to sanitise the pool water. Pool water, which contains dissolved Mineral Crystals / pool salt passes over Hydrochlor’s chlorinator cell. This in turn splits the salt into its basic components, one being chlorine.
Power Pack Dimensions
Chlorinator Cell Dimensions
Hydrochlor can work with a standard salt pool, but our engineers didn’t stop there. They specially designed it to work in synergy with Waterco’s Mineral Crystals to transform your pool in a therapeutic oasis.
Energy Saving Hydrochlor uses the latest Switch Mode Power Technology to increase energy efficiency by over 50%, significantly reducing power consumption. Hydrochlor draws less current and this translates to high power conversion and less energy wastage, without compromising chlorine output. |
Intelligent Hydrochlor’s Power Pack intelligently recognises the size of the connected chlorinator cell and automatically adjusts its power output to suit. |
Salt Level Protection An alarm indicates when salt levels in the pool water too high or too low. If the pool is running beyond the maximum recommended salt level, the chlorinator will limit its output to protect the chlorinator cell. |
|
Automated Self-Cleaning Hydrochlor’s self-cleaning chlorinator cell has the added ability to reverse its polarity and automatically clean calcium build-up off its electrodes. |
No Flow Detection If no water flow is detected in the chlorinator cell, Hydrochlor automatically switches off the chlorine production to protect the chlorinator cell, and activates the No Flow LED indicator. |
A salt chlorinator produces chlorine the same way a chlorine factory does. The difference in the process is that it is manufactured in your pool by passing an electric current through a solution of brine (common Mineral Crystals / salt dissolved in water).
From time-to-time it may become necessary to add some chlorine to the pool. This may be due to heavy rain, excessive bather load, or if the chlorine level needs to be shocked back up.
No, it doesn’t. Low levels of Mineral Crystals / salt have relatively insignificant corrosive effects on pool fittings and equipment.
After setting up the salt chlorinator, you simply add recommended amount of Mineral Crystals and/or pool salt to your pool and choose your desired chlorine level.
To run the pool on pool salt only, add approximately 1kg of pool salt for every 1,000 lt to raise the level 1,000 ppm. Therefore, 300 kgs of salt will raise a 50,000 litre pool from 0 ppm to 6,000 ppm.
If you wish to use the Waterco Mineral Crystals and take advantage of the benefits offered, then refer to the table below for recommendations on the quantity of Mineral Crystals to add to your pool.
Energy Saving Hydrochlor uses the latest Switch Mode Power Technology to increase energy efficiency by over 50%, significantly reducing power consumption. Hydrochlor draws less current and this translates to high power conversion and less energy wastage, without compromising chlorine output. |
Intelligent Hydrochlor’s Power Pack intelligently recognises the size of the connected chlorinator cell and automatically adjusts its power output to suit. |
Salt Level Protection An alarm indicates when salt levels in the pool water too high or too low. If the pool is running beyond the maximum recommended salt level, the chlorinator will limit its output to protect the chlorinator cell. |
|
Automated Self-Cleaning Hydrochlor’s self-cleaning chlorinator cell has the added ability to reverse its polarity and automatically clean calcium build-up off its electrodes. |
No Flow Detection If no water flow is detected in the chlorinator cell, Hydrochlor automatically switches off the chlorine production to protect the chlorinator cell, and activates the No Flow LED indicator. |
