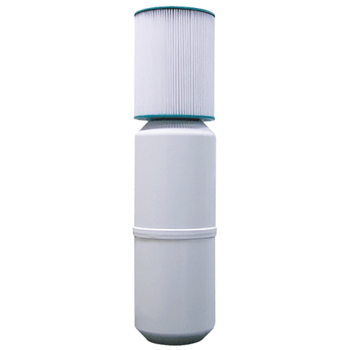

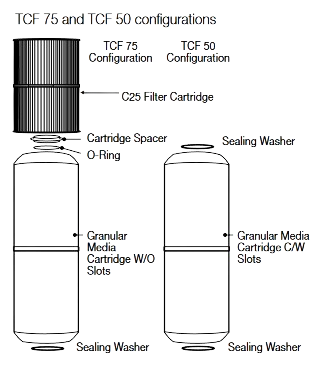

Trimline granular media cartridges are able to house 12 litres of filter media and are designed to allow water to enter via the top of the cartridge and flow through the full height of the filter bed before exiting at the bottom of the cartridge.

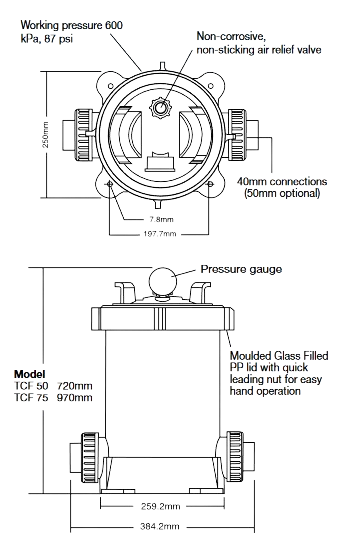

The TCF series housings are designed for top loading with an easy locking ring system requiring no additional tools for simple cartridge removal and replacement. The TCF series housings are fabricated from high impact polypropylene to be compatible with a wide range of fluids.

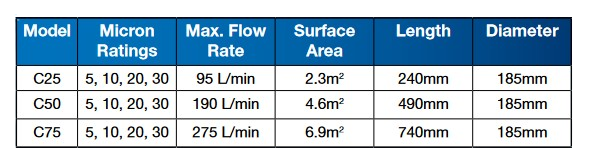

The Pleated Filter Cartridges are fabricated from pleated reusable polyester fabric. The media has been pleated to provide 2.3 to 6.9 square metres of surface area in order to maximise the cartridge dirt holding capacity and extend the time between cleaning.
Material: Polyester Fabric material, Vinyl Plastisol end caps, Polypropylene coreOperating Temperature: 4ºC to 50ºC
Maximum Pressure Drop: 20 kPa
The granular media cartridges are able to house 12 litres of filter media and are designed to allow water to enter via the top of the cartridge and flow through the full height of the filter bed before exiting at the bottom ofthe cartridge.
Warranty: Waterco is proud to show its absolute confidence in its range of TCFs by offering a 5-year (2+3)* tank warranty and 1 year warranty on all other components.
*Commercial applications attract a 2 year tank warranty
Rugged Construction
Constructed from high impact polypropylene and designed for easy maintenance, Trimline cartridge filters will give years of trouble free service.

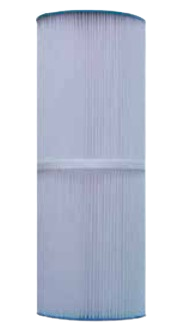

Trimline Pleated Filter Cartridge
The Trimline pleated filter cartridges are fabricated from pleated reusable polyester fabric. The media has been pleated to provide 4.6 to 9.3 square metres of surface
area in order to maximise the cartridge dirt holding capacity and extend the time between cleaning.
Simple Maintenance
The filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.
Rugged Construction
Constructed from high impact polypropylene and designed for easy maintenance, Trimline cartridge filters will give years of trouble free service.
Trimline Pleated Filter Cartridge
The Trimline pleated filter cartridges are fabricated from pleated reusable polyester fabric. The media has been pleated to provide 4.6 to 9.3 square metres of surface
area in order to maximise the cartridge dirt holding capacity and extend the time between cleaning.
Simple Maintenance
The filter cartridge is easily cleaned by hosing the pleats with a standard garden hose.
