Hydron Split Tank Filter

The Hydron Split Tank is manufactured from the highest grade of non-corrosive materials using the latest in gel coated fibreglass technology, in addition to the standard working pressure of 4 bars.

Sign Up for Waterco Newsletter

  • Designed for water treatment and commercial swimming pool facilities, built using the latest in gel coated fibreglass technology.

  • Lightweight and Durable

    Fibreglass pressure tanks have a number of major advantages over steel tanks including:

    Durability: Fibreglass vessels have a mechanical and chemical resistance superior to steel, plus fibreglass does not rust or corrode and is able to withstand damage from many types of water treatment chemicals.

    Lightweight: Fibreglass tanks weigh only one third that of steel vessels, whilst maintaining the same level of strength. This makes them easy to ship and install.

    Easy to Maintain: Once installed they are virtually free of maintenance or repairs. This compares with steel vessels, which require the anti-corrosive coating to be maintained periodically, with certified welders required to make repairs to the lining with epoxy coating.

    Ideal for Retrofitting

    They can be delivered in two parts and assembled on site in the plant room. The two halves seal perfectly, using double o’ring and held together by a flange using bolt and nuts. The filter is specifically designed to fit through existing standard size plant room doors.

  •

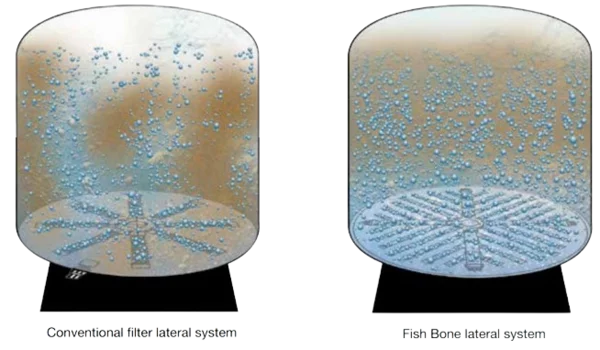

    “Fish Bones” Laterals

    Hydron Split-Tank Filters features Waterco’s “fish bones” lateral, which improves water flow distribution through the filter bed. Conventional laterals are not suitable for larger size commercial filters. Dead legs’ exist between the laterals, and the water flow is not optimised through the filter bed. Conversely, Waterco’s ‘fish bones’ lateral configuration eliminates any dead legs.

  •

The fibreglass filters are ideal for retrofitting. They can be delivered in two parts and assembled on site in the plant room. The two halves seal perfectly, using an o’ring and held together by a flange using bolt and nuts.

Features

  • Durability:   Fibreglass vessels have a mechanical and chemical resistance superior to steel, plus fibreglass does not rust or corrode and is able to withstand damage from many types of water treatment chemicals.
  • Lightweight Fibreglass tanks weigh only one third that of steel vessels, whilst maintaining the same level of strength.
  • Easy to Maintain: Once installed they are virtually free of maintenance or repairs..
  • Ideal for retrofitting: They can be delivered in two parts and assembled on site in the plant room. The two halves seal perfectly, using double o’ring and held together by a flange using bolt and nuts. The filter is specifically designed to fit through existing standard size plant room doors.
  • Hydron Split-Tank Filters features Waterco’s “fish bones” lateral, which improves water flow distribution through the filter bed.
  • Optional configurations of sight glasses and lateral manholes.

FAQ

  •   What is the Hydron Split Tank Filter?

    The Hydron Split Tank Filter is a water filtration system designed for various applications, featuring a split tank design for installation to tight access areas.

  •   What are the key features of the Hydron Split Tank Filter?

    This filter typically features a durable split tank design tank, patented boring for reliable inlet/outlet flange sealing, unique distribution and lateral collector system for even flow which ensures effective filtration and backwashing, air relieve valves and dedicated lifting points. Optional heavy duty laterals are also available for industrial or air scour applications, and a side-mounted design, providing efficient and reliable water filtration.

  •   What maintenance is required for the Hydron Split Tank Filter?

    Regular maintenance includes inspecting and cleaning or replacing the filtration media, checking valves and connections, and ensuring that the filter operates within specified parameters.

  •   Where can I use the Hydron Split Tank Filter?

    The filter is suitable for residential, commercial, and industrial applications, providing effective water filtration for swimming pools, spas, water features, aquaculture/ life support systems, and other water systems.
