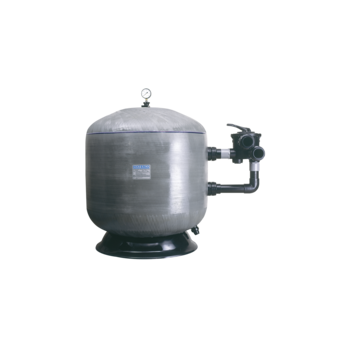

Micron Side Mount Media Filter

Manufactured from the highest grade of non corrosive materials and employing the latest in fibreglass winding technology, Micron fibreglass filters are designed and built for many years of trouble free operation.

Sign Up for Waterco Newsletter

  • Waterco fibreglass filters embody the latest in fibreglass winding technology. Waterco’s digitally controlled filament winding machine faultlessly winds continuous strands of fibreglass filament to create a strong filter vessel with refined consistency and superior quality.

  • Proven Durability

    Waterco fibreglass filters are perfectly suited to the constant increases and decreases in pressure experienced by sand filters. Accelerated cyclic testing has shown that even after simulating 20 years of use, Waterco fibreglass filters withstood cyclic wear and tear better than most other filters in its class.

  • Dimensions



  • Easy Maintenance

    Cleansing the filter simply requires turning the Multiport lever from the ‘filter’ position to the ‘backwash’ position.



    Warranty

  • Filter Mode:

    Backwash Mode:

Features:

  • Fibreglass wound tank, UV and Corrosion Resistant.
  • Hydraulically balanced laterals to maximise water flow and filtration.
  • Optional six position Multiport valve with sight glass and quick connect half unions.
  • Available in filter areas of 1.13m2 to 2.01m2
  • Pressure rated at 250 kPa (36 psi), 400 kPa (58 psi), 600 kPa (87psi) and up to 800 kPa (116 psi)
  • Maximum working temperature of 50°C (122°F)
  • Optional sight glasses and lateral man holes.
  • Optional fibreglass reinforced vinyl ester for improved chemical resistance

FAQ

  •   What is the Micron Side Mount Media Filter by Waterco?

    The Micron Side Mount Media Filter is a water filtration system designed for various applications, featuring a side-mounted configuration for more even distribution than a top mounted filter and ease of installation and maintenance.

  •   Where can I use the Micron Side Mount Media Filter?

    The filter is suitable for applications such as swimming pools, water features, aquaculture/ life support systems and industrial processes, offering effective water filtration.

  •   What are the key features of the Micron Side Mount Media Filter?

    This filter typically features a durable tank construction, patented boring for reliable inlet/outlet flange sealing, positive sealing top access way, unique distribution and lateral collector system for even flow which ensures effective filtration and backwashing, lateral access a hole for maintenance, air relieve valves and dedicated lifting points. Optional heavy duty laterals are also available for industrial or air scour applications.

  •   What maintenance is required for the Micron Side Mount Media Filter?

    Regular maintenance includes backwashing the filter media, inspecting valves and connections, and ensuring that the filter is operating within specified parameters. Refer to the user manual for comprehensive maintenance guidelines.
