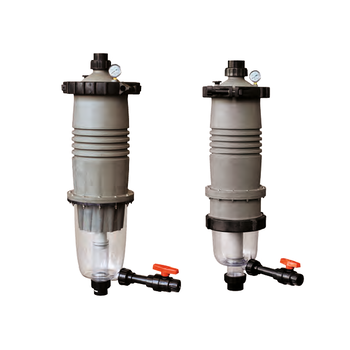

MultiCyclone 12 & 16 Ultra

MultiCyclone Ultra combines centrifugal and cartridge filtration into one streamline housing, creating an ultra compact filtration system that can be vertically installed on a pool pump.
- Dual stage filtration
- Ultra compact
- Ease of maintenance

Dual stage filtration

Incoming water tangentially enters its multiple hydrocyclones, generating a strong centrifugal effect. Approximately 80% of the incoming dirt load is spiralled down to its clear sediment chamber. The outgoing water is finally polished via its inbuilt cartridge filter,producing crystal clear water producing crystal clear water.

Extended filter capacity

As MultiCyclone Ultra’s centrifugal section filter pre-filters up to 80% of the incoming dirt load, the capacity of its 75ft2 filter cartridge is magnified by up to 5 times
Ease of maintenance

MultiCyclone Ultra’s sediment chamber is easily cleaned by opening its purge valve. Only 15 litres of water is discharged.

Ultra Compact

MultiCyclone Ultra’s streamline design combines the benefits of the Waterco award winning MultiCyclone prefiltration and a compact cartridge filter that enables a reduction in pool equipment foot print and required pipe work, reducing the filtration system overall head loss. The MultiCyclone Ultra can also be mounted using the MultiCyclone support stand.

Warranty: MultiCyclone Ultra is covered by a 2 year warranty and 1 year warranty on labour. Commercial installations are covered by a 1 year warranty

MultiCyclone 12 & 16 Ultra combines centrifugal and cartridge filtration into one streamline housing, creating an ultra compact filtration system that can be vertically installed on a pool pump.

MultiCyclone 12 & 16 Ultra is the ideal choice for small to large sized in ground swimming pools.
