• Images showing Hydroxzone ozonator and its branding

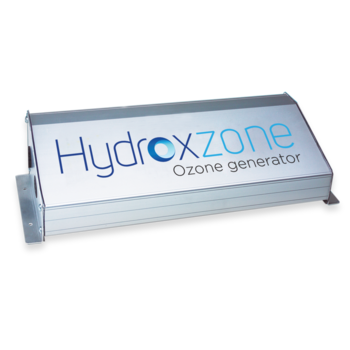

Hydroxzone Ozonators

The Hydroxzone Ozonator uses hybrid patented technology to produce not only ozone but also hydroxyl radicals, which, combined, add another level of effectiveness in terms of oxidation and sanitation.

Hydroxzone system uses a modified VUV (high intensity ultraviolet light) ozone tube as a corona electrode to simulate nature (hybrid ozone acts like the sun). The result is an ozone generator that produces ozone using corona discharge technology and high energy light in one system.

Sign Up for Waterco Newsletter

  • Considered one of the most powerful sanitisation systems on the market, Hydroxzone Ozone Generator is designed as a standalone product for new and existing swimming pools. Using hybrid patented technology, Hydroxzone produces ozone and hydroxyl radicals, which together increases oxidation and sanitisation efficiency.

    • Constant ozone output, not adversely affected by temperature or humidity.

    • Produces hydroxyl radicals, considered one the most powerful oxidisers found in nature.

    • Incorporates a Dynamic Venturi Injector to minimise pressure drop and increase efficiency of the ozone transfer.

    • No moving parts, requiring zero maintenance.

    • Enhances the sanitisation by reducing the demand the sanitiser.

  • How does it work?

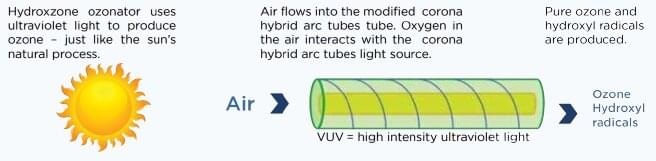

    In the natural world, ozone (O3) is created when oxygen molecules are subjected to ultraviolet (UV) rays from the sun or an electric charge from lightning. Some oxygen (O2) molecules are split into single oxygen atoms, which then combine with other O2 molecules to form ozone. By simulating nature, Hydroxzone converts ambient air into ozone, free from impurities.

    Hydroxzone uses a modified VUV (High Intensity Ultra Violet Light) ozone tube as a corona electrode to simulate nature; the result is an ozone generator that produces ozone using corona discharge technology and high-energy light in one compact system.

    The natural flocculating effect (clustering together of impurities) that ozone has on the water, greatly improves filtration performance. Oxidised contaminants are easily removed, leaving your pool crystal clear.

The ozonator can be used in pools with manual or automatic chlorine dosing and also with salt chlorinators.

The Hydroxzone uses a Dynamic Venturi Injector, whereby the pool water is mixed with the ozone/air mix at the throat of the injector through a narrow annular orifice, thus creating very small bubbles. This method of delivery allows the bubbles to be sustained in the water, maximising the efficiency of the ozone mass transfer.

Benefits

  • It produces pure ozone (there are no toxic nitrous compounds as found in standard corona discharge ozone generators)
  • Output is constant and not negatively affected by temperature or humidity as with standard corona discharge technology
  • It produces hydroxyl radical, one of the most powerful oxidisers found in nature
  • There are no moving parts, which makes maintenance easy
  • It’s easy to install and comes with a bypass kit
  • Can be used on new pools or easily retrofitted to existing pools

FAQ

  •   How does Hydroxzone work?

    Hydroxzone uses a modified VUV (High Intensity Ultra Violet Light) ozone tube as a corona electrode to simulate nature; the result is an ozone generator that produces ozone using corona discharge technology and high-energy light in one compact system. A safe, clean and effective way of using the extra oxygen molecules to keep your pool sanitised. The natural flocculating effect (clustering together of impurities) that ozone has on the water, greatly improves filtration performance. Oxidised contaminants are easily removed, leaving your pool crystal clear.

  •   What are the benefits of using ozone?

    • Destroys bacteria,and viruses

    • Decreases chlorine demand

    • Produces crystal clear water

    • Substantially reduces maintenance, time and cost in pools and spas

    • Eliminates chlorine odour (chloramines)

    • Does not produce harmful by-products

    • An excellent flocculant

  •   What is ozone (03)?

    • It is a form of energetic oxygen

    • Produced naturally through sparks and UV-Light

    • A powerful oxidant

    • Ozone performs two major functions in water that effectively removes contaminants and organic loading:

    • Oxidation of organic compounds
    • Disinfection of micro organisms
